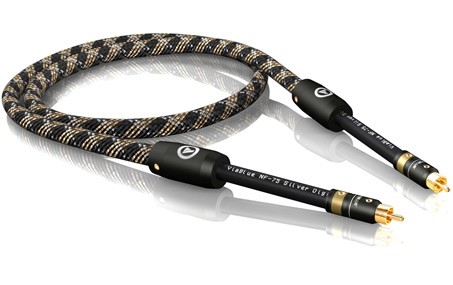

Viablue NF-75 Silver RCA

ViaBlue™ NF-75 RCA S/PDIF interconnects are coaxial high-end digital cables with ideal electrical values. They enable error-free and correct transmission of digital signals. With a base line requirement of a 75-Ohm surge impedance, a polyethylene foam dielectric and a silver-plated shield are further applied as technical refinements. This leads to extremely low resistance values and thus to maximum transmission speeds of digital electric signals. The ViaBlue™ silver shield, NF-75 interconnects have a 100% surface casing shield from electrical interference fields. The screen is composed of an aluminum foil sheath and a silver-plated braided sheath.

Assembled with T6s RCA connectors.

NF-75 RCA S/PDIF interconnects are manufactured with 24 karat gold-plated ViaBlue™ T6s RCA connectors that have pins made of bronze. They ensure extremely strong contact pressure and thus very low contact resistance. The NF-75 cables are braided with the ViaBlue™ Cobra protective sleeve.

Technical specifications:
Outter diameter: 9 mm
Screenings: 2 (2X foil / 1X spiral)
Connectors: T6s RCA plugs
Finishing: silvered / tinned
Capacity / impedance: 52pF/M / 75 OHM
Marking: black
Play in time: appr. 12 hours
